Dry milling machine
1. Completely dry milling machine is based on in-depth research and development edger new generation of technological achievements, to overcome the water will be dried through, causing damage, packaging defects chromatic aberration and return water, thus saving drying, circulating water and other investment
Financing and covering and energy waste, and the work environment is clean, clean after grinding residual material can be used directly blank recipe.
2. Referring to the foreign cash screening technology and design, the financial machine, internal generation of gas in one, the degree of automation to engage, stable performance.
| Technical Parameters |
Model
|
Working thickness （ mm）
|
Working width（ mm）
|
Grinding motor power（ kw）
|
Chamfered head motor power（ kw）
|
Total gas consumption
(L/min)
|
The main drive motor power（ kw）
|
Push bricks Motor Power（ kw）
|
Assembly power（ kw）
|
Conveyor speed（ m/min）
|
Working pressure
|
Dimensions（ m）
（ L×W×H ）
|
Weight（ Kgs）
|
ZGM650/32+4
|
0~20
|
250~650
|
3.5
|
1.5
|
100
|
3
|
0.37
|
121
|
7~14
|
0.6~0.8 Mpa
|
5.3×2.55×1.4
|
13,500
|
ZGM650/36+4
|
0~20
|
250~650
|
3.5
|
1.5
|
100
|
3
|
0.37
|
135
|
7~16
|
0.6~0.8 Mpa
|
5.55×2.55×1.4
|
14,500
|

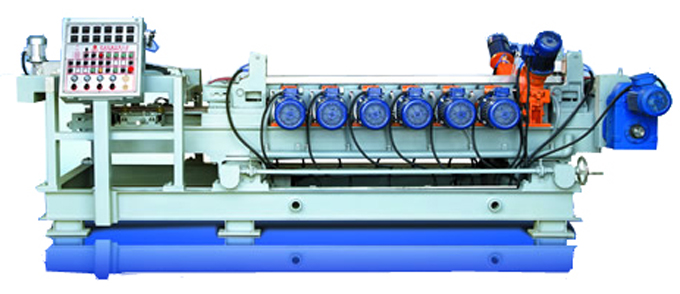

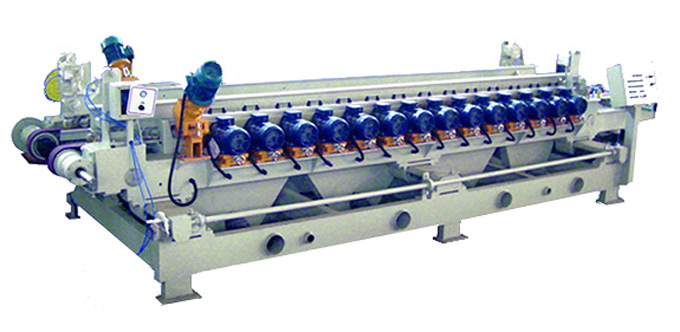

Wet milling machine
Double pressure beam structure and imported synchronous belt drive, can effectively eliminate the presence of ceramic tile in the "size of the head," "edge waves" and micro chipping and other defects. Use & nbsp; 200 ~ 250 mm chamfer milling and grinding wheel dressing, heavier type milling head cartridge design, low power consumption, grinding with excellent results.
Configuration of the agencies and institutions Frequency push brick, accurate positioning can be balanced on both sides of the amount of grinding and grinding brick size of the head and the diagonal error control in the ideal range.
Electric PLC control, speed display, a high degree of automation, stable performance.
| Technical Parameters |
Model
|
End Cutting head count
（set）
|
Number chamfer grinding（set）
|
Working width（mm） |
End Cutting head motor power（kw）
|
Chamfered head motor power（kw）
|
The main drive motor power（kw）
|
Push bricks Motor Power（kw）
|
Assembly power（kw）
|
Conveyor speed（m/min）
|
Water Consumption（l/min）
|
Dimensions（m）
（L×W×H）
|
Weight（Ton）
|
ZM600/28+4
|
28
|
4
|
300~600 |
4
|
1.5
|
3
|
0.55
|
116.07
|
5~23
|
400
|
2.10×2.275×1.39
|
13.0
|
| ZM600/32+4 |
32 |
4 |
300~600 |
4 |
1.5 |
3 |
0.55 |
132.07 |
5~23 |
400 |
2.16×2.275×1.39 |
14.0 |
| ZM800/28+4 |
28 |
4 |
400~800 |
4 |
1.5 |
3 |
0.55 |
116.07 |
5~23 |
400 |
2.17×2.475×1.39 |
13.5 |
| ZM800/32+4 |
32 |
4 |
400~800 |
4 |
1.5 |
3 |
0.55 |
132.07 |
5~23 |
400 |
2.23×2.475×1.39 |
14.5 |
| ZM1000/28+4 |
28 |
4 |
600~1000 |
4 |
1.5 |
3 |
0.75 |
100.27 |
5~20 |
400 |
2.22×2.675×1.39 |
14.0 |
| ZM1000/32+4 |
32 |
4 |
600~1000 |
4 |
1.5 |
3 |
0.75 |
116.27 |
5~20 |
400 |
2.28×2.675×1.39 |
14.5 |
| ZM1200/28+4 |
28 |
4 |
800~1200 |
4 |
1.5 |
3 |
0.75 |
100.27 |
5~20 |
400 |
2.27×2.875×1.39 |
14.5 |
ZM1200/32+4
|
32
|
4
|
800~1200 |
4
|
1.5
|
3
|
0.75
|
116.27
|
5~20
|
400
|
2.33×2.875×1.39
|
15.0
|
