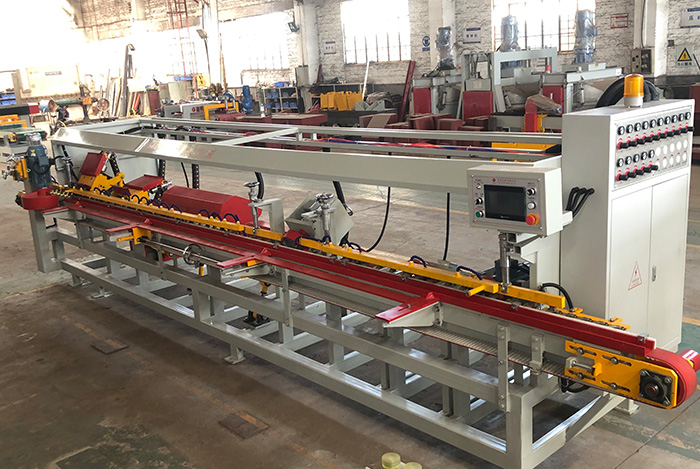

Device name:

Front and rear retaining plate edging machine

Specification model:

ZD-YH150

Remarks:

Processing plate thickness: 15-30 mm

Grinding head configuration: trimming, beveling, and upper R, flat edge polishing

Processing plate width: 40-150 mm

Running speed: 1-3 meters per minute

Power: 16.3KW

Dimensions: 6860X1560X1700

Total weight: 3000KG

product description:

The front and rear water retaining strip edging machine is suitable for the processing of quartz stone, artificial stone, and marble front and rear water retaining strips. Its functions include trimming, beveling, flat edge, arc, rough grinding, fine grinding and polishing of stone. . Its arc grinding adopts the most stable crank-rocker mechanism, the whole machine operation is automatically controlled, simple and easy to understand, high production efficiency, high gloss of processed products, standard size, no dust, no pollution, greatly reducing labor costs .

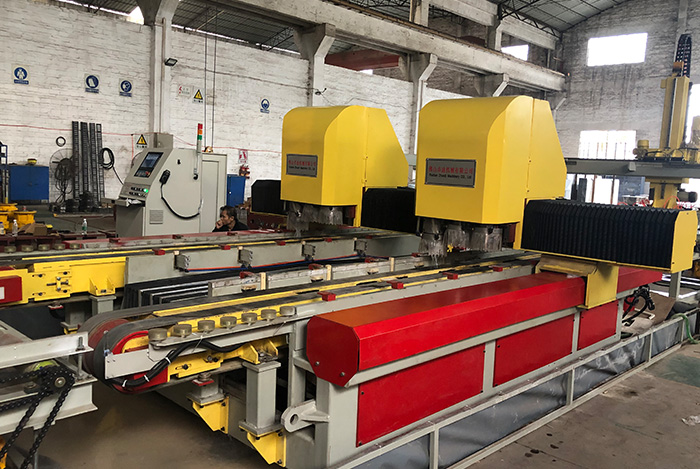

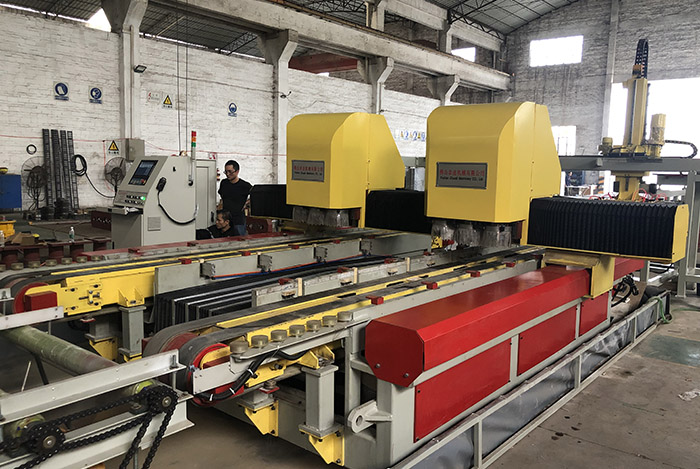

Device name:

Digging and grinding machine

Specification model:

ZD-3 axis, 6 axis

Remarks:

The largest processing plate size: 2500x650mm The largest processing plate size: 3000X650mm (3000X1200 mm)

Processing plate thickness: 10-30 mm

Number of electric spindles: 3 6

Electric spindle power: 5.5KW/24000rpm

Maximum water consumption: 4L/min

Control method: automatic

Graphics operation mode: fixed graphics selection and CAD graphics import

Total installed power: 28.5KW 45KW

Voltage: 380V/50Hz

Dimensions: 5000X3600X2100MM Total weight: 4000KG 4500KG

product description:

LG-3 axis and 6 axis CNC hole digging and grinding machine is a new type of fully automatic numerical control equipment newly developed by our company, which is mainly used for drilling and grinding holes on stone countertops. The equipment automatically locates with high precision, realizes the digging, grinding and polishing of the plate at one time, and the tool automatically sets various R edges. The device

With automatic image reading and programming functions, there is no need for the cumbersome process of traditional drawing software. It can realize single-station and double-station processing, greatly improving production efficiency and quality effects, standard size, no dust, no pollution,

Greatly reduce labor costs.

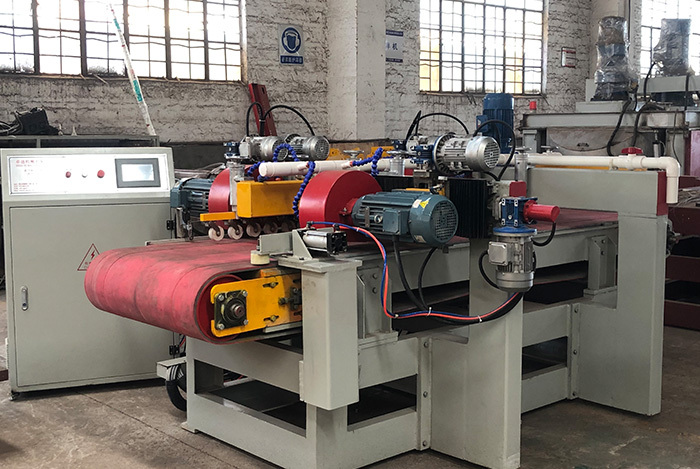

Device name:

Multi-saw blade cutting machine

Specification model:

ZD-C2-800

Remarks:

Maximum cutting width: 800mm

Number of blades: 5

Blade diameter: 300-350 mm

Cutting board thickness: 10-30 mm

Cutting speed: 1-5 m/min, adjustable

Power: 34.2KW

Dimensions: 3000X2000X1600 mm

Total weight: 3000KG

product description:

Multi-saw blade automatic CNC cutting machine (also known as slitting machine) is a machine for cutting stone slabs. After the board is placed, it will automatically move into the positioning edge. The standard consists of 5 saw blades, of which 2 cut the two sides of the board, 3 saw blades cut the 3-6 cm quartz stone water retaining strip and the table top, the upper and lower left and right data of the equipment, width and narrow dimensions The data are all automatically adjusted, and the operation is convenient and simple. The equipment adopts imported screw guide rails, etc., with high cutting precision and efficiency up to a standard 2. The length of the standard plate is dust-free and pollution-free, which greatly reduces labor costs .

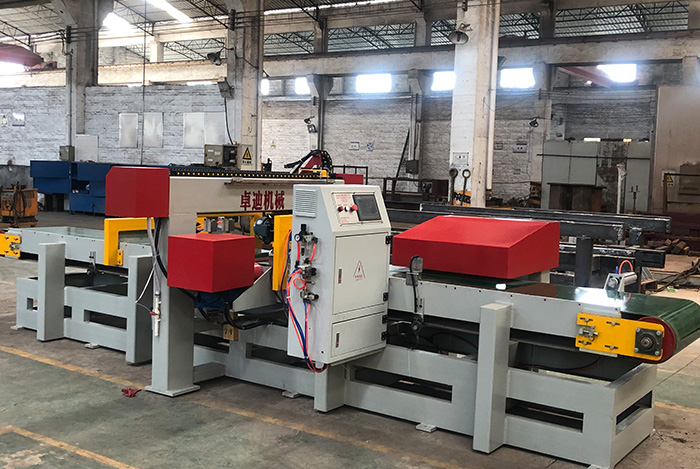

Device name:

Stone transverse cutting machine

Specification model:

ZD-C1-800

Remarks:

Maximum cutting board width: 800 mm

Cutting board thickness: 10-30mm

Cutting speed: 2 m/min

Blade diameter: 300-350 mm Total power: 6. 6KW

Dimensions: 6000X1800X1800mm

Total weight: 1500KG

product description:

The stone transverse cutting machine is a machine that cuts the length of the stone slab to a fixed length. After the slab enters the feeding frame, it automatically moves into the positioning edge. The required cutting length is set through the screen, and the software automatically calculates it. The slab is fed through the moving conveyor belt. The cutting machine performs cutting, and can set multiple cutting data for the plate. It is fast, standard size, dust-free and pollution-free, which greatly reduces labor costs and is a good helper for many engineering orders.
