Natural Stone Polishing

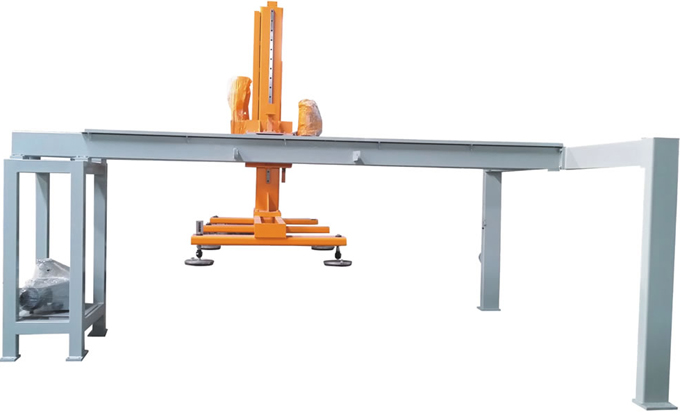

Polishing line sucker on board aircraft

Using high column structure, the machine only needs to go to work and manual work during startup and shutdown. By roller proximity switch stage suction plate to sucker machine signal, enabling automatic suction plate and automatic unloading board, paddle trips run by photocell control, the whole process without human control, unmanned automatically controlled by a program. The machine can be put plate rack plate breathe a hair roller table in less than one minute. Effectively reduce the labor intensity.

The machine is equipped with a joint venture of the vacuum pump.

The machine movements using linear guide, so that lifting sucker walking speed with fast speed and more stable.

Walking adopt gear rack fit, smooth durable, accurate stop position.

Technical Parameters Technical Parameters
Device Name	Model	Lifting power	Walking Power	Pump power	Weight	Dimensions (mm)
Sucker loader	ZDXS1650	1.5KW	0.37KW	2.2KW	2 t	4700X3300X3000
Sucker loader	ZDXS800	1.5KW	0.37KW	2.2KW	1.5T	2500X3300X3000

360 ° rotation may be propelled suction cup upper and lower plate machine

Artificial machine on and off to work and work only when required. By roller table proximity switch signal to sucker machine, enabling automatic suction plate and automatic unloading board, paddle trips run by photocell control, the whole process without human when the suction plate

Workers control, unmanned automatic control through the program, effectively reducing the labor intensity. The sucker sucker machine can be rotated 180 degrees for horizontal or upright sheet when the sheet store handling, and positive and negative can be stacked as needed, and can automatically travel for a certain distance of the sheet placement. Power: 7.1KW.

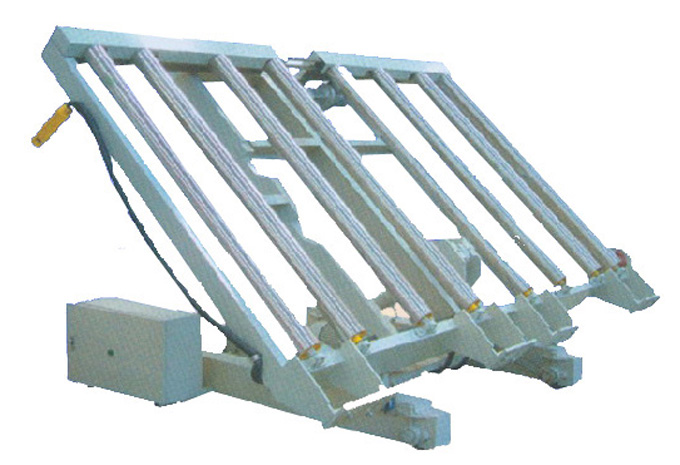

The upper and lower plate machine.

Flap hydraulic system adopts highly integrated drive cylinders driven;

With a shock absorbing device;

Electrically driven roller transfer sheet;

Setting power walking on board function.

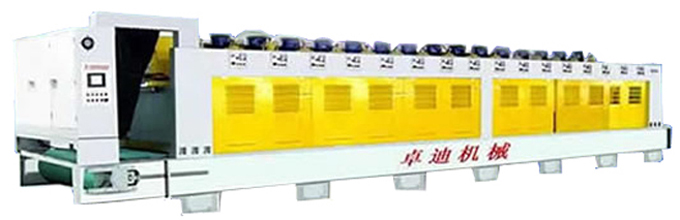

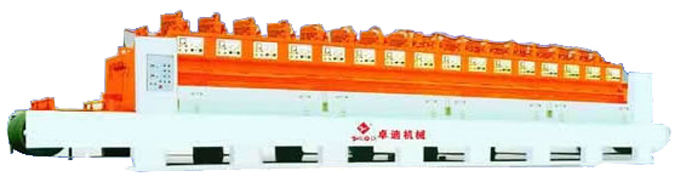

Technical Parameters Technical Parameters
Model	The polishing head count（ set ）	Working thickness（ mm ）	Working width（ mm ）	Swing motor power（ kw ）	Grinding motor power（ kw ）	The main drive motor power（ kw ）	Assembly power（ kw ）	Conveyor speed（ m/min ）	Water Consumption（ l/min ）	Dimensions（ m ）（ L × W × H ）	Weight（ T ）
ZFP600/16	16	8-20	400-600	2.2 *2	11	2.2	181.2	0.5 -3	400	1273026702300	20000
ZFP800/16	16	8-20	500~800	2.2 *2	11	2.2	181.2	0.5~ 3	400	1273028702300	21000
ZFP1000/16	16	8-20	700~1000	2.2*2	11	3	183.4	0.5~ 3	400	1273030702300	22000
ZFP1200/16	16	8-20	900~1200	2.2*2	11	3	183.4	0.5~ 3	400	1273032702300	25000

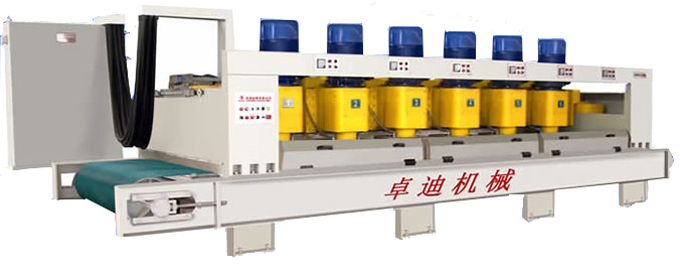

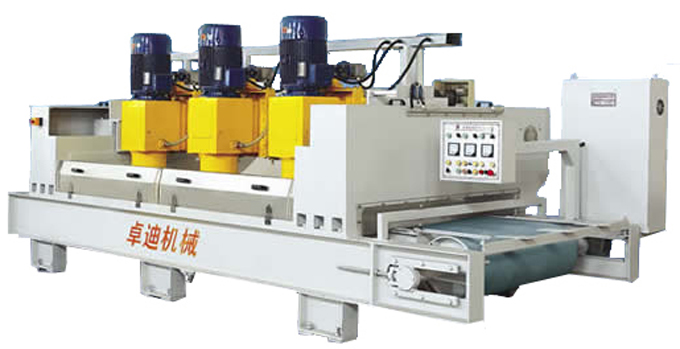

Technical Parameters Technical Parameters
Model	Calibrating hob head count（ set）	Working thickness（ mm）	Working width（ mm）	Swing motor power（ kw）	Grinding motor power（ kw）	The main drive motor power（ kw）	Assembly power（ kw）	Conveyor speed（ m/min）	Water Consumption（ l/min）	Dimensions（ m）（ L×W×H）	Weight（ T）
ZYD1000/4	4	10~40	500~1000	2.2	18.5	1.5	78	0.5~2	210	6.45×2.93×2.2	10
ZYD1200/4	4	10~40	600~1200	2.2	18.5	1.5	78	0.5~2	210	6.45×3.13×2.2	11
ZYD1600/6	6	10~40	700~1600	2*2.2	18.5	2.2	116	0.5~2	320	8.45×3.53×2.2	16
ZYD2100/6	6	10~40	800~2100	2*2.2	18.5	2.2	116	0.5~2	320	8.45×4.03×2.2	18

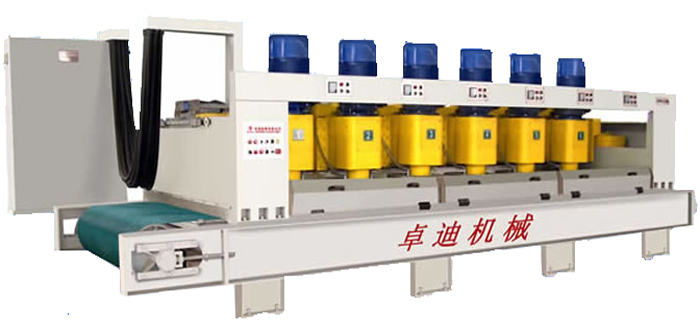

Technical Parameters
Model	Calibrating hob head count（set）	Working thickness（mm）	Working width（mm）	Swing motor power（kw）	Grinding motor power（kw）	The main drive motor power（kw）	Total power（kw）	Conveyor belt speed（m/min）	Water consumption（l/min）	Dimensions（m）（ L×W×H ）	Weight（T）
ZYD1000/4	4	10~40	500~1000	2.2	18.5	1.5	78	0.5~2	210	6.45×2.93×2.2	10
ZYD1200/4	4	10~40	600~1200	2.2	18.5	1.5	78	0.5~2	210	6.45×3.13×2.2	11
ZYD1600/6	6	10~40	700~1600	2*2.2	18.5	2.2	116	0.5~2	320	8.45×3.53×2.2	16
ZYD2100/6	6	10~40	800~2100	2*2.2	18.5	2.2	116	0.5~2	320	8.45×4.03×2.2	18

Technical Parameters
Model	Calibrating hob head count（set）	Working thickness（mm）	Working width（mm）	Swing motor power（kw）	Grinding motor power（kw）	The main drive motor power（kw）	Assembly power（kw）	Conveyor speed（m/min）	Water Consumption（l/min）	Dimensions（m）（ L×W×H ）	Weight（T）
ZYD1000/4	4	10~40	500~1000	2.2	18.5	1.5	78	0.5~2	210	6.45×2.93×2.2	10
ZYD1200/4	4	10~40	600~1200	2.2	18.5	1.5	78	0.5~2	210	6.45×3.13×2.2	11
ZYD1600/6	6	10~40	700~1600	2*2.2	18.5	2.2	116	0.5~2	320	8.45×3.53×2.2	16
ZYD2100/6	6	10~40	800~2100	2*2.2	18.5	2.2	116	0.5~2	320	8.45×4.03×2.2	18
